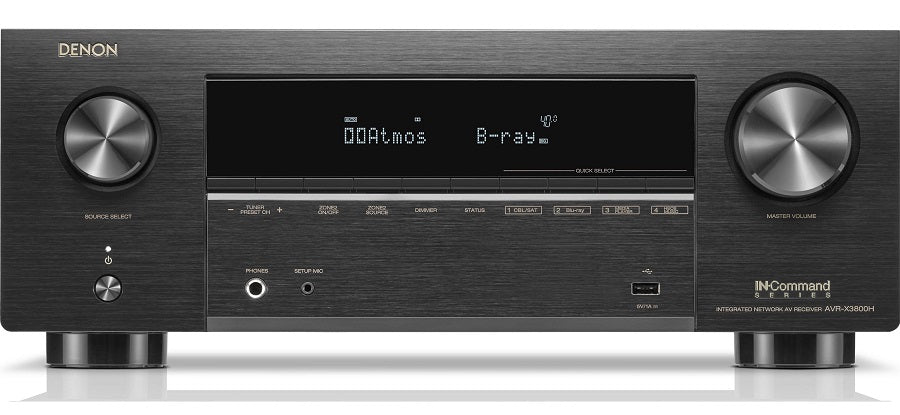

Denon AVR-X3800H 8K Home Theater AV Receiver with Dolby Atmos®

by Denon
Original price $2,249.00 - Original price $2,249.00
Original price $2,249.00
$2,249.00
$2,249.00 - $2,249.00
Current price $2,249.00

9.4-channel home theatre receiver with Dolby Atmos®, Bluetooth®, Apple AirPlay® 2, and Amazon Alexa compatibility (AVRX3800H)

With the new Denon AVR-X3800H, you can enjoy high-definition, precision-based home theatre entertainment. This performance-tuned Denon receiver delivers a completely immersive 3D audio experience with eARC enabled pass-through at 105W per channel (8 ohms, 20Hz-20kHz, THD: 0.08%, 2 ch. driven). The AVR-X3800H is compatible with the most recent 3D audio formats, including IMAX® Enhanced, Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, and DTS Virtual:XTM. It also supports the most recent video standards, including HDCP 2.3 compliance on all HDMI inputs (7 in/3 out), 8K/60Hz and 4K/120Hz pass-through, Dolby VisionTM, HDR10, HDR10+, Dynamic HDR, and HLG. It also supports 8K upscaling.

With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms. MP3 and Hi-Res audio files (WAV, FLAC, ALAC, and DSD 2.8/5.6 MHz files) can be conveniently played back via the front-panel USB. With HEOS® Built-in, you can wirelessly stream music from services like Spotify®, Pandora®, TIDAL, and more over Bluetooth, Apple AirPlay 2, and Wi-Fi. For simple voice control, the Denon AVR-X3700H is compatible with Amazon Alexa, Google Assistant, Apple Siri, and Josh.ai.

Expert Ready

You'll be amazed at the available configuration options to best fit your space.

Geared for 8K

Enjoy amazing video quality from the latest 8K technology available. Enjoy 8K quality video from your 8K source devices with the newest HDMI supporting full HDCP2.3. There is one 8K input, two 8K outputs, and pass-through for both 8K/60Hz and 4K/120Hz. All 7 HDMI inputs support 8K upscaling.

Optimized for your room

Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional upgrade available with future SW update).

High performance nine-channel amplifier

Discrete high-current amplifiers deliver up to 105W per channel (at 8 ohms, 20- 20kHz, THD 0.08%)—enough power to drive any speaker.

3D audio experience

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.) With Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X, and IMAX Enhanced, you may fully immerse yourself in 3D audio.

Configuration flexibility

AVR-X3800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 11.4 channel processing capability, Pre- Amplifier mode, and optional Dirac Live upgradability (with fee, coming soon in 2023).

The acclaimed Denon Setup Assistant makes sure you get setup perfectly the first time by graphically guiding you through each step of the process. Every home theatre is unique, so Denon uses the high-end Audyssey MultEQ XT32 room calibration technology from Audyssey to deliver a truly immersive 3D audio experience that is specifically tailored to your individual listening environment. This technology automatically measures and optimises your AV receiver.



Specifications

Amplifier
Channels 9.4
Object-Based Configuration: 5.1.4
With External Amplifier: 11.4
With External Amplifier: 7.1.4
Power Output per Channel 2-Channel Driven:
105 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
135 W at 6 Ohms / 1 kHz / 0.7% THD
1-Channel Driven:
215 W at 6 Ohms / 1 kHz / 10% THD
Audio Processing
DTS Compatibility DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD
Auro 3D Support Yes
Upmixing Technology Dolby Surround, DTS Neural:X
Supported File Formats 2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA via USB
Video
HDR Compatibility HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
Pass-Through Support 8K
Upscaling 8K UHD
GUI Yes
Connectivity
Rear A/V Inputs 6 x HDMI 2.1
2 x Optical TOSLINK
2 x Digital Coaxial
5 x Stereo RCA
1 x Stereo RCA (Phono MM) with Ground Screw
Rear A/V Outputs 2 x HDMI
1 x HDMI Zone 2
1 x 11-Channel RCA Pre-Out
4 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 Pre-Out
Front I/O 1 x USB-A Input/Output
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O 2 x Bluetooth/Wi-Fi Coaxial F-Type Input/Output
1 x FM Coaxial F-Type Input
1 x AM Block Input
1 x RJ45 (Ethernet) Input/Output
1 x 1/8" / 3.5 mm (Remote) Input
1 x 1/8" / 3.5 mm (Remote) Output
1 x DE-9 (RS-232C) Input
1 x 1/8" / 3.5 mm (12 V Trigger) Output
Speaker Connectors 11 x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround)
HDCP Support Version 2.3
HDMI Compression Modes 4K120AB / 8K60AB
Audio Return Channel (ARC) ARC, eARC
HDMI CEC Yes
Media Card Slot None
A/B Speaker Selection Yes
Bi-Amp Capability Yes
Wireless Connectivity
Bluetooth Yes
Wireless Audio Protocols AirPlay 2, HEOS, Roon Ready, Spotify Connect
Control
External Control Support Android/iOS Control App
Virtual Assistant Apple AirPlay, Works with Alexa, Works with Google Assistant, Josh.ai, Siri
Tuner Section
Tuner Type AM, FM
Power
Power Consumption Active: 660 W
No Sound (ECO On): 60 W
No Sound (ECO Off): 100 W
Standby: 0.1 W
CEC Standby: 0.5 W
Network Standby: 2 W
Physical
Dimensions (W x H x D) 17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up)
Weight 27.6 lb / 12.5 kg
Packaging Info
Package Weight 33 lb
Box Dimensions (LxWxH) 21 x 19.5 x 10.5"
Dimensions (W x H x D) 17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up)
Weight 27.6 lb / 12.5 kg
