Paradigm H65-R V2 CI Home In-Ceiling Speaker

Original price $249.99 - Original price $249.99
Original price
$249.99
$249.99 - $249.99
Current price $249.99

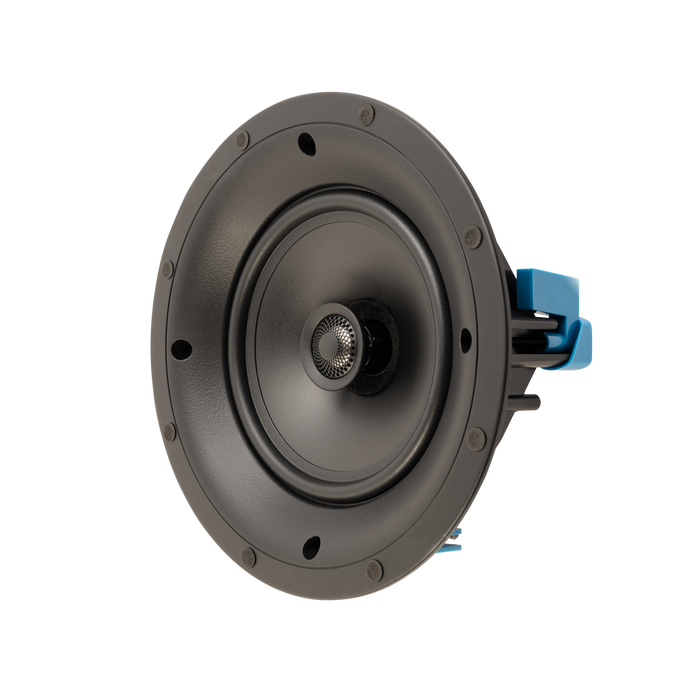

Paradigm H65-R V2 CI Home In-Ceiling Speaker

The CI Home™ series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

High-Quality Components Make An Audible Difference

  • Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
  • Pocketed screw holes help to hold the drill steady, making installation a snap.
  • Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
  • Rigid ABS clamps cut down on installation time and simplifying installation.
  • Superior
    Mineral-Filled Polypropylene Bass/Midrange Cones with oversized
    computer-optimized ferrite magnets and high-power motor structures
    deliver detailed midrange performance with clean, extended bass. Even
    movie dialog is incredibly clean and clear.
  • NEW Bezel-Free Micro-Perf Grilles.
  • Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
  • No masking required—this makes the grilles faster and easier to paint, if painting is desired.

A Solid Installation

Our High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer’s job easier and faster!

SPECIFICATIONS

DESIGN 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
CROSSOVER 2nd-order electro- acoustic at 3.0 kHz
HIGH FREQUENCY DRIVER 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
FREQUENCY RESPONSE ON-AXIS ±2 dB from 70 Hz - 20 kHz
FREQUENCY RESPONSE 30° OFF-AXIS ±2 dB from 70 Hz - 18 kHz
MID/BASS FREQUENCY DRIVER 6.5” (16.5cm) Mineral-filled Polypropylene Cone
SENSITIVITY ROOM / ANECHOIC 89 dB / 85 dB
LOW FREQUENCY EXTENSION 55 Hz
SUITABLE AMPLIFIER POWER RANGE

15-80 W

MAXIMUM INPUT POWER 50 W
IMPEDANCE Compatible with 8 ohms
WEIGHT 3.5 lbs (1.6 kg)
FINISHES White, paintable grille, black speaker
ACCESSORIES (NOT INCLUDED) PB-8RN
CUT-OUT DIMENSIONS 7-3/4” (19.6cm) dia.
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)
3” (7.6cm)
DIMENSIONS HXWXD (INCLUDES GRILLE). 8-3/4” (diameter) x 3-5/8” (depth) (22.1cm x 9.2cm)
