Home Audio Single Zone DIY Bronze Kit

by VSSL
Save 23% Save 23%
Original price $1,295.00
Original price $1,295.00 - Original price $1,295.00
Original price $1,295.00
Current price $998.95
$998.95 - $998.95
Current price $998.95

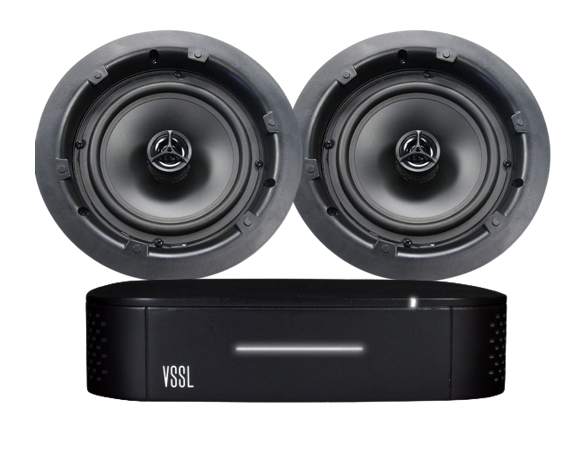

DIY Home Audio Bronze Kit Includes:

1. VSSL A.1X Single Zone Wifi Amp X 1

2. Sync Sound 6-1/2'' In-Ceiling Speaker X 2

3. Pre-Programmed for an Easy Do-It-Yourself Install!

4. Connections and Installation guide, for a simple plug & play Home audio system

The Amp - VSSL A.1x:  is simplistic in design and use. The A.1x gives you the ability to connect one zone, or room, to your home audio system and gives you the freedom to use any music streaming app to play audio to that room. Use an A.1x to power the audio in a single room or add multiple A.1x’s to create a whole-home audio experience throughout your home or business. The A.1x can also be added to another system, like the A.3x or A.6x  for an extra zone of audio.

  • With Native Streaming abilities, use any of your favorite apps to play music straight to desired audio zones. New music services are available immediately, no waiting for system updates.
  • Zone control using any mobile device or tablet
  • Use the VSSL app on iOS and Android to set up and configure settings and added room control.
  • High fidelity amplifier. The A.1x is made for the music enthusiast with the highest-grade components available.
  • With the A.1x, you can use the native multi-room listening features of Airplay2 or Google Chromecast. For local inputs, you can share these with other VSSL zones using the VSSL app
  • Stability – Designed with extreme detail for reliability speaker outputs are 8 and 4Ω stable, with auto protection circuitry to keep your music playing.

 Features & Specifications

Zones: 1 EQ: 7-band adjustable
Channels: 2 S/N Ratio: >98dB A-weighted
Amplifier: Class D, 35 W @ 8Ω, 50 W @4Ω Freq. Response: 20-20kHz





Inputs: (1) Analog, (1) Optical, (1) Digital Coax, (1) IR, (1) Network Bluetooth: v4.2, EDR





Wireless Inputs: Airplay2, Chromecast built-in, Spotify Connect, Alexa Cast, Bluetooth Rack Space: 1U





Outputs: (1) Analog, (1) Optical, (1) Digital Coax, (1) Subwoofer, (1) Network Dimensions (No Feet): 7.44” W x 1.69“ H x 8.69” D
WiFi: 2.4/5.8 GHz Dual Antenna MIMO





Dimensions (with Feet): 7.44” W x 2“ H x 8.69” D
Sub Out: RCA, Adjustable cross over 55-200 Hz or by-pass for full range Weight: 3.5 lbs








The Speakers - SyncSound SS-ICS-6: The Bezel-Less Round In-Ceiling Speakers is perfect for those who want excellent performance reliability and durability at an affordable price, the SS-ICS-6 bring dynamic acoustic performance to both home and commercial environments. Its thin-bezel rimless grilles ensure a clean look to the installation.

SPECIFICATIONS:

  • Frameless Grille
  • 6.5" Poly woofers with butyl rubber surrounds
  • Proven Mounting System
  • Frame and Grilles may be painted to match mounting surface
  • Frequency Response: 50Hz - 20kHz ± 3 dB
  • Power Handling: 70 watts (35 RMS.)
  • Sensitivity: 89dB
  • Tweeter: 1/2" dome tweeter
  • Perforated Frameless Metal Grilles held by neo magnets
  • Impedance: 8 ohms
  • Overall Diameter: 23.2cm
  • Mounting Depth: 9.2cm
  • Cutout Diameter: 7.87" / 20cm
  • Warranty: 1 Year

This is a "Ready to Go" - Do-It-Yourself single zone Home Audio Solution, fully programmed to provide you with ease of install and use. You may not need professional installer to program the system that puts money back in your pocket.

However, should you anyway need any professional assistance our team of certified professionals are always ready to assist.
