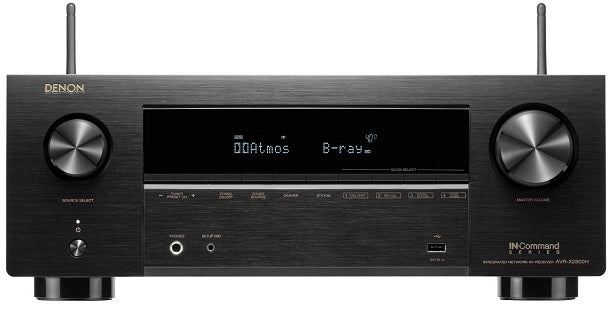

Denon AVR-X2800H 8K Home Theater AV Receiver with Dolby Atmos®
7.2-channel 8K home theatre receiver with Wi-Fi®, Dolby Atmos®, Bluetooth®, Apple AirPlay® 2, and Amazon Alexa compatibility (AVRX2800H)
Denon's AVR-X2800H 7.2-Channel Network A/V Receiver lets you enjoy whole-home music and expand the capabilities of your home theatre. With the AVR-X2800H, you have alternatives when it comes to watching movies and television shows because it offers both immersive 5.2.2-channel speaker configurations and 7.2-channel speaker sets.
AVRX2800H supports Dolby Atmos and DTS:X for height-based surround sound. High-definition video is also supported up to 8K on three of the receiver's six HDMI inputs and both of its outputs. You have a high-quality centerpiece for your home's entertainment options when you combine it with HEOS built-in for wireless audio in any room.
High performance discrete 7-channel amplifier
Discrete high-current amplifiers on all channels to deliver up to 95W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive any speaker.
Immersive audio experience
Get immersed in music and movies with Dolby Atmos® and DTS:X® plus Dolby Surround and DTS Neural:X up mixer to optimize legacy content.
Advanced 8K Home Theatre
8K video is supported on three of six HDMI inputs and two outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.
HEOS® Built-in technology
Stream music wirelessly to compatible HEOS-enabled components from a variety of streaming services. Add Denon Home speakers to more rooms and control it all with the HEOS app.
Music streaming throughout your home
The AVR-X1800H with HEOS® Built-in, easily access streaming music and share with HEOS-enabled speakers in other rooms through Bluetooth or Apple AirPlay 2, you can play music from your phone or tablet. Over your Wi-Fi network, play your music library in digital format. A turntable's built-in phono input can also be used. Even tracks in high resolution can be played from a USB device. Enjoy music services like Spotify, Pandora, Amazon Music HD etc. (Subscription required. Music streaming services are charged extra directly by the service/content provider)
Setup Assistant and Audyssey room correction
Simple, detailed instructions on how to get started are provided in the Quick Start Guide that is included. The unique Denon Setup Assistant will display on your TV screen once your TV is connected and will guide you through setup step-by-step. The AVR-X2800H carefully examines the output of each speaker to optimize each channel using the built-in Audyssey MultEQ XT room acoustic monitoring technology and accompanying microphone.
Specifications
| Channels | 7.2 Object-Based Configuration: 5.2.2 |
| Power Output per Channel | 2-Channel Driven: 95 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 125 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 185 W at 6 Ohms / 1 kHz / 10% THD |
| DTS Compatibility | DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD |
| Auro 3D Support | No |
| Upmixing Technology | Dolby Surround, DTS Neural:X |
| Supported File Formats | 2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA via USB |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| Pass-Through Support | 8K |
| Upscaling | None |
| GUI | Yes |
| Rear A/V Inputs | 3 x HDMI 2.1 3 x HDMI 2 x Optical TOSLINK 1 x Digital Coaxial 4 x Stereo RCA 1 x Stereo RCA (Phono MM) with Ground Screw |
| Rear A/V Outputs | 2 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone 2 Pre-Out |
| Front I/O | 1 x USB-A Input/Output 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input |
| Other Rear I/O | 2 x Bluetooth/Wi-Fi Coaxial F-Type Input/Output 1 x FM Coaxial F-Type Input 1 x AM Block Input 1 x RJ45 (Ethernet) Input/Output 1 x 1/8" / 3.5 mm (Remote) Input 1 x 1/8" / 3.5 mm (Remote) Output 1 x DE-9 (RS-232C) Input |
| Speaker Connectors | 7 x Binding Post Pairs (Front, Center, Rear, Rear Surround) |
| HDCP Support | Version 2.3 |
| HDMI Compression Modes | 4K120AB / 8K60AB |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Media Card Slot | None |
| Bi-Amp Capability | Yes |
| Bluetooth | Yes |
| Wireless Audio Protocols | AirPlay 2, HEOS, Roon Ready, Spotify Connect |
| External Control Support | Android/iOS Control App |
| Virtual Assistant | Apple AirPlay, Works with Alexa, Works with Google Assistant, Josh.ai, Siri |
| Tuner Type | AM, FM |
| Power Consumption | Active: 500 W No Sound (ECO On): 35 W No Sound (ECO Off): 75 W Standby: 0.1 W CEC Standby: 0.5 W Network Standby: 2 W |
| Dimensions (W x H x D) | 17.1 x 6.6 x 13.0" / 43.4 x 16.8 x 33.0 cm (Antenna Removed) 17.1 x 9.3 x 13.4" / 43.4 x 23.6 x 34.0 cm (Antenna Up) |
| Weight | 21 lb / 9.5 kg |
| Package Weight | 25.375 lb |
| Box Dimensions (LxWxH) | 21.6 x 17 x 9.8" |
